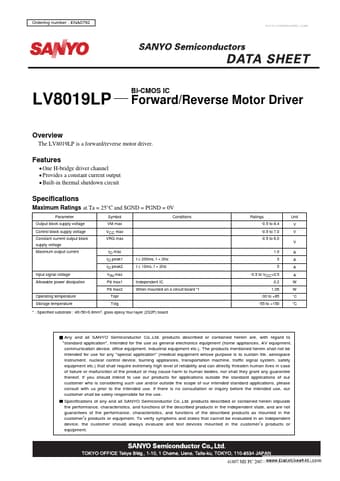

Part number: LV8019LP
Manufacturer: Sanyo Semiconductors
File Size: 101.67KB
Download: 📄 Datasheet
Description: Bi-CMOS IC Forward/Reverse Motor Driver
* One H-bridge driver channel
* Provides a constant current output
* Built-in thermal shutdown circuit
Specifications
Maximum Ratings at Ta = 25°C and SGND =.
outside the standard applications of our customer who is considering such use and/or outside the scope of our intended s.
Equivalent circuit
www.DataSheet4U.com
VCC IN1 IN2 ICTRL S-GND 10kΩ
13
EN
EN pin Controls the on/off state of the H-bridge output (OUT1 and OUT2) and the constant current output. See the truth table for details.
VCC 10kΩ 200kΩ S-GND
EN
1, 2, .
