LV8042LG - Bi-CMOS IC For Digital Still Cameras 7-Channel Single-Chip Motor Driver ICs

Product Overview

Sanyo Semiconductors

Part number	LV8042LG
Manufacturer	Sanyo Semiconductors
File Size	243.52 KB
Description	Bi-CMOS IC For Digital Still Cameras 7-Channel Single-Chip Motor Driver ICs
Datasheet	LV8042LG Datasheet

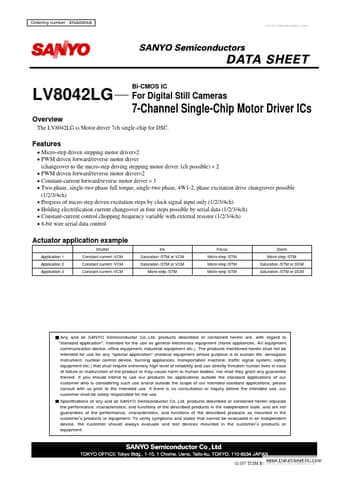

Additional preview pages of the LV8042LG datasheet.

Bi-CMOS IC For Digital Still Cameras 7-Channel Single-Chip Motor Driver ICs The LV8042LG is Motor driver 7ch single-chip for DSC.
Micro-step driven stepping motor driver×2.
PWM driven forward/reverse motor driver (changeover to the micro-step driving stepping motor driver 1ch possible) × 2.
PWM driven forward/reverse motor driver×2.
Constant-current forward/reverse motor driver × 1.
Two-phase, single-two phase full torque, single-two phase, 4W1-2.
