LV8041FN - Seven-Channel Motor Driver IC

Product Overview

Sanyo Semiconductors

Part number	LV8041FN
Manufacturer	Sanyo Semiconductors
File Size	1.17 MB
Description	Seven-Channel Motor Driver IC
Datasheet	LV8041FN Datasheet

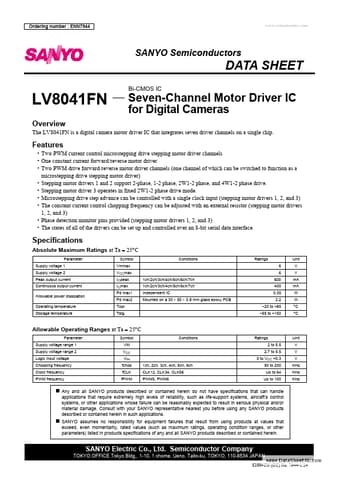

Additional preview pages of the LV8041FN datasheet.

Seven-Channel Motor Driver IC Bi-CMOS IC for Digital Cameras The LV8041FN is a digital camera motor driver IC that integrates seven driver channels on a single chip.
Two PWM current control microstepping drive stepping motor driver channels.
One constant current forward/reverse motor driver.
Two PWM drive forward/reverse motor driver channels (one channel of which can be switched to function as a microstepping drive stepping motor driver).
Stepping mot.
