25FV101T - LE25FV101T

Sanyo

The 25FV101T by Sanyo is a LE25FV101T. Below is the official datasheet preview.

📥 Download Datasheet

25FV101T LE25FV101T by Sanyo - Datasheet Preview — Official preview page of the **25FV101T** LE25FV101T datasheet (Sanyo).

Datasheet Details

Part number	25FV101T
Manufacturer	Sanyo
File Size	99.93 KB
Description	LE25FV101T
Datasheet	25FV101T_Sanyo.pdf

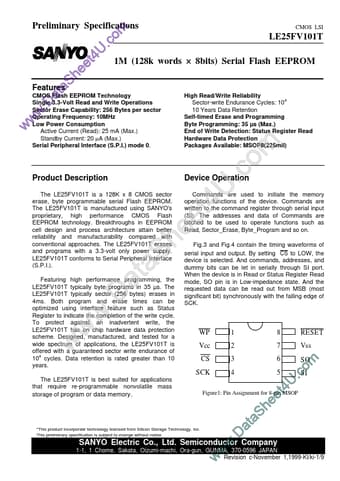

Additional preview pages of the 25FV101T datasheet.

25FV101T Product details

Description

Device Operation The LE25FV101T is a 128K x 8 CMOS sector Uerase, byte programmable serial Flash EEPROM.t4The LE25FV101T is manufactured using SANYO's proprietary, high performance CMOS Flash eEEPROM technology.Breakthroughs in EEPROM cell design and process architecture attain better ereliability and manufacturability compared with conventional approaches.The LE25FV101T erases hand programs with a 3.3-volt only power supply.SLE25FV101T conforms to Serial Peripheral Interface (S.P.I.).taF

Features

CMOS Flash EEPROM Technology aSingle 3.3-Volt Read and Write Operations . DSector Erase Capability: 256 Bytes per sector wOperating Frequency: 10MHz wLow Power Consumption w Active Current (Read): 25 mA (Max. ) High Read/Write Reliability Sector-write Endurance Cycles: 104 10 Years Data Retention Self-timed Erase and Programming Byte Programming: 35 µs (Max. ) End of Write Detection: Status Register Read Standby Current: 20 µA (Max. ) Serial Peripheral Interface (S. P. I. ) mode 0. Hardware Data Pro.
