A1477 - 2SA1477

A1477 Description

Ordering number:ENN2089B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1477/2SC3787 160V/140mA Switching Applications Applications * Predriver.

A1477 Features

* Adoption of FBET process.
* Excellent linearity of hFE.
* Small Cob.
* Plastic-convered heat sink facilitating high-density mounting (TO-126ML package). Package Dimensions unit:mm 2042B [2SA1477/2SC3787] 8.0 4.0 1.0 1.0 3.3 3.0 1.6 0.8 1.5 1.4 3.0 7.5 15.5 11.0 0.8 0.75 0.

A1477 Applications

* Applications

📥 Download Datasheet

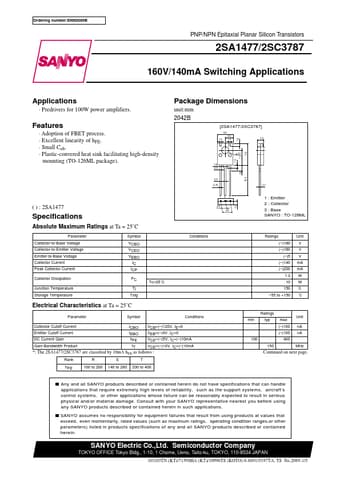

Preview of A1477 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1477
Manufacturer
Sanyo
File Size
40.62 KB
Datasheet
A1477-Sanyo.pdf
Description
2SA1477
