A1478 Datasheet - Sanyo Semicon Device

A1478, PNP/NPN Epitaxial Planar Silicon Transistors

Ordering number:EN2253A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1478/2SC3788 High-Definition CRT Display Video Output Applications .

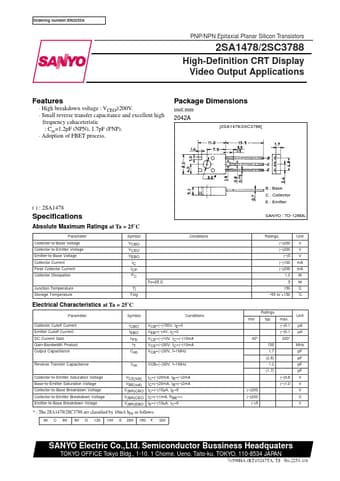

datasheet Preview Page 1 from Datasheet4u.com

A1478-SanyoSemiconDevice.pdf

A1478 Datasheet Preview — Preview of A1478 PDF

Datasheet Details

Part number:

A1478

Manufacturer:

Sanyo Semicon Device

File Size:

153.38 KB

Description:

PNP/NPN Epitaxial Planar Silicon Transistors

Features

* High breakdown voltage : VCEO≥200V.
* Small reverse transfer capacitance and excellent high frequency cahaceteristic : Cre=1.2pF (NPN), 1.7pF (PNP).
* Adoption of FBET process. Package Dimensions unit:mm 2042A [2SA1478/2SC3788] ( ) : 2SA1478 Specifications Absolute Maximum Ratings a
