C3083 - 2SC3083

C3083 Description

Ordering number:EN947B NPN Triple Diffused Planar Silicon Transistor 2SC3083 400V/6A Switching Regulator Applications .

C3083 Features

* High breakdown voltage (VCBO≥500V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2022A [2SC3083] Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-3PB Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Collector-to-Base Volta

📥 Download Datasheet

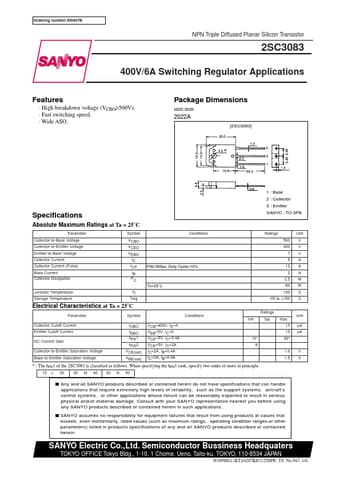

Preview of C3083 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3083
Manufacturer
Sanyo
File Size
96.21 KB
Datasheet
C3083-Sanyo.pdf
Description
2SC3083
