C3087 - 2SC3087

C3087 Description

Ordering number:EN1011B NPN Triple Diffused Planar Silicon Transistor 2SC3087 500V/5A Switching Regulator Applications .

C3087 Features

* High breakdown voltage (VCBO≥800V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2010C [2SC3087] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Collect

📥 Download Datasheet

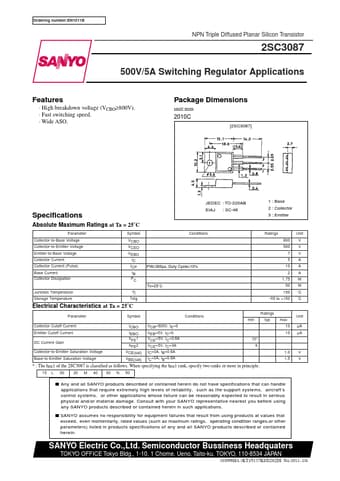

Preview of C3087 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3087
Manufacturer
Sanyo
File Size
91.07 KB
Datasheet
C3087-Sanyo.pdf
Description
2SC3087
