C30809 Datasheet - PerkinElmer Optoelectronics

(C30807 - C30831) N-Type Silicon PIN Photodetectors

C30809 Features

* Broad Range of Photosensitive Surface Areas 0.2 mm2 to 100 mm2

* Low Operating Voltage VR = 45V

* Anti-Reflection Coated to Enhance Responsivity at 900 nm

* Hermetically-Sealed Packages

* Spectral Response Range 400 to 1100 nm Maximum Ratings, Absolute-Maxi

C30809 General Description

This family of N-type silicon p-i-n photodiodes is designed for use in a wide variety of broad band low light level applications covering the spectral range from below 400 to over 1100 nm. The different types making up this series provide a broad choice in photosensitive areas and in time response c.

C30809 Datasheet (140.55 KB)

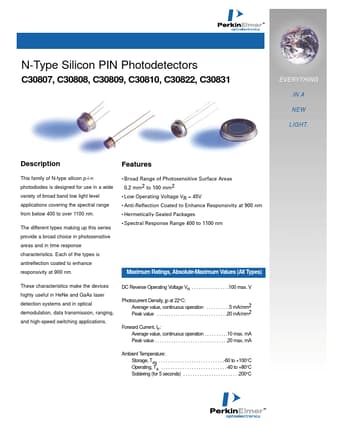

C30809 Datasheet Preview — Preview of C30809 PDF

Datasheet Details

Part number:

C30809

Manufacturer:

PerkinElmer Optoelectronics

File Size:

140.55 KB

Description:

(c30807 - c30831) n-type silicon pin photodetectors.
