C4219 - 2SC4219

C4219 Description

Ordering number:EN2709 NPN Triple Diffused Planar Silicon Transistor 2SC4219 400V/4A Switching Regulator Applications .

C4219 Features

* High breakdown voltage, high reliability (VCEO≥400V).
* Fast switching speed (tf=0.1µs typ).
* Wide ASO.
* Adoption of MBIT process.
* Suitable for sets whose height is restricted. Package Dimensions unit:mm 2049C [2SC4219] 10.2 4.5 1.3 1.6 0.9 11.0 8.8 20.9 11.5 1.2 9.4

📥 Download Datasheet

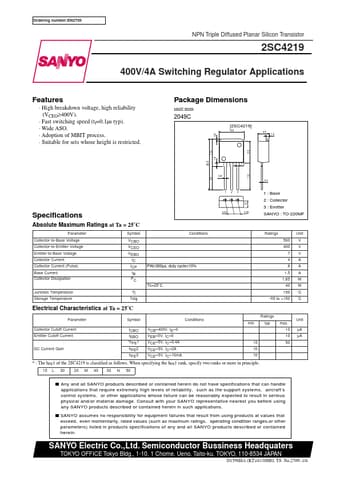

Preview of C4219 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4219
Manufacturer
Sanyo
File Size
90.52 KB
Datasheet
C4219-Sanyo.pdf
Description
2SC4219
