C4269 2SC4269

C4269 Description

Ordering number:EN2969A NPN Epitaxial Planar Silicon Transistor 2SC4269 VHF Converter, Local Oscillator Applications .

C4269 Features

* High power gain : PG=15dB typ (f=0.4GHz)
* High cutoff frequency : fT=1.2GHz typ Package Dimensions unit:mm 2018B [2SC4269] 0.4 3 0.16 0~0.1 0.5 1.5 0.5 2.5 1 0.95 0.95 2 1.9 2.9 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to

📥 Download Datasheet

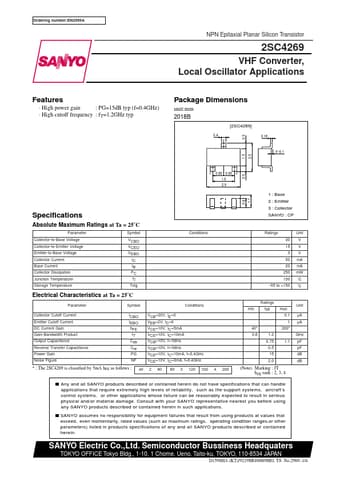

Preview of C4269 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4269
Manufacturer
Sanyo
File Size
105.50 KB
Datasheet
C4269-Sanyo.pdf
Description
2SC4269
