C4224 - 2SC4224

C4224 Description

Ordering number:EN2763A NPN Triple Diffused Planar Silicon Transistor 2SC4224 800V/3A Switching Regulator Applications .

C4224 Features

* High breakdown voltage, high reliability.
* Fast switching speed (tf=0.1µs typ).
* Wide ASO.
* Adoption of MBIT process.
* Suitable for sets whose height is restricted. Package Dimensions unit:mm 2049C [2SC4224] 10.2 4.5 1.3 1.6 0.9 11.0 8.8 20.9 11.5 1.2 9.4 0.8 0.4 1

📥 Download Datasheet

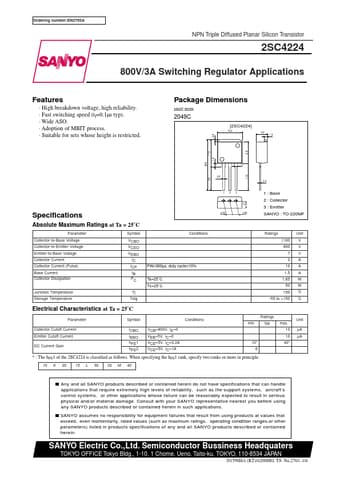

Preview of C4224 PDF
