C4435

2SC4435

C4435 Features

* Fast switching speed (tf=300ns max).

* High brocking voltage (VCBO=1500V).

* High reliability (Adoption of HVP process).

* Adoption of MBIT process. Package Dimensions unit:mm 2022A [2SC4435] 15.6 3.2 14.0 4.8 2.0 1.3 1.2 3.5 15.0 20.0 2.6 Specifications Absolute Maximum Rati

C4435 Datasheet (90.68 KB)

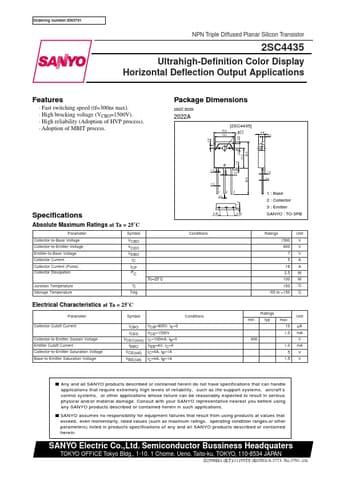

Preview of C4435 PDF

Datasheet Details

Part number:

C4435

Manufacturer:

Sanyo

File Size:

90.68 KB

Description:

2sc4435.
Ordering number:EN3791 NPN Triple Diffused Planar Silicon Transistor 2SC4435 Ultrahigh-Definition Color Display Horizontal Deflection Output Applicat.
