C5347 - 2SC5347

C5347 Description

Ordering number : EN5512C 2SC5347 SANYO Semiconductors DATA SHEET 2SC5347 NPN Epitaxial Planar Silicon Transistor High-Frequency Semi-Power Output .

C5347 Features

* High-frequency medium output amplification (VCE=5V, IC=50mA) : fT=4.7GHz typ (f=1GHz). :⏐S21e⏐2=8dB typ (f=1GHz). : NF=1.8dB typ (f=1GHz). Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector

📥 Download Datasheet

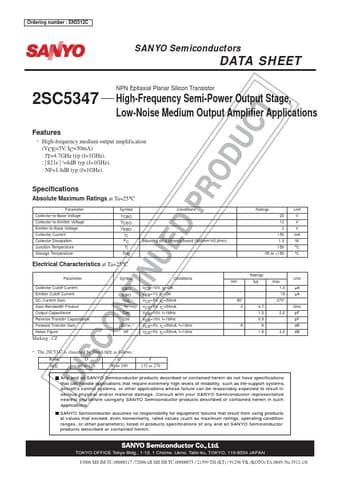

Preview of C5347 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5347
Manufacturer
Sanyo
File Size
75.60 KB
Datasheet
C5347-Sanyo.pdf
Description
2SC5347
