C5343 - NPN Silicon Transistor

Datasheet Summary

Description

General small signal amplifier

Features

Low collector saturation voltage : VCE(sat)=0.25V(Max. ).
Low output capacitance : Cob=2pF(Typ. ).
Complementary pair with 2SA1980 Ordering Information Type NO. 2SC5343 Marking C5343 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 PIN Connections 1. Emitter 2. Collector 3. Base 0.38 KST-9005-002 1 www. DataSheet4U. com 2SC5343 Absolute maximum ratings Character.

AUK Corporation

📥 Download Datasheet

Datasheet Details

Part number	C5343
Manufacturer	AUK Corporation
File Size	122.21 KB
Description	NPN Silicon Transistor
Datasheet	C5343 Datasheet
Additional preview pages of the C5343 datasheet.

📁 Similar Datasheet

C5342 - 2SC5342 (AUK)
C5344 - 2SC5344 (AUK)
C5346 - 2SC5346 (Panasonic Semiconductor)
C5347 - 2SC5347 (Sanyo)
C534T-WLN - LED (CREE)
C5300 - VCXO 9X14 J Leaded Surface Mount Package Reflow Process Compatible Optional ACMOS (Vectron International)
C5300 - 2SC5300 (Sanyo)
C5301 - 2SC5301 (Sanyo Semicon Device)
C5302 - 2SC5302 (Sanyo Semicon Device)
C5303 - 2SC5303 (Sanyo Semicon Device)

Other Datasheets by AUK Corporation

Full PDF Text Transcription

Click to expand full text

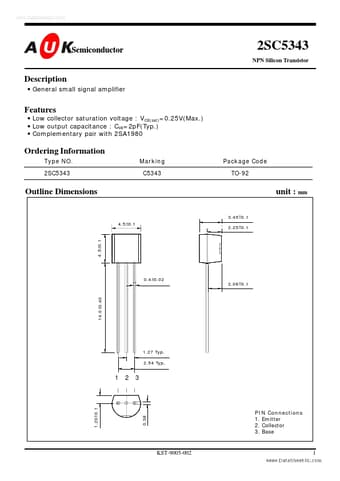

www.DataSheet4U.com 7 Semiconductor 2SC5343 NPN Silicon Transistor Description • General small signal amplifier Features • Low collector saturation voltage : VCE(sat)=0.25V(Max.) • Low output capacitance : Cob=2pF(Typ.) • Complementary pair with 2SA1980 Ordering Information Type NO. 2SC5343 Marking C5343 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 PIN Connections 1. Emitter 2. Collector 3. Base 0.38 KST-9005-002 1 www.DataSheet4U.
