C5342 - 2SC5342

C5342 Description

Semiconductor 2SC5342 NPN Silicon Transistor .
Medium power amplifier Features. Large collector current : IC=500mA. Low collector saturation voltage enabling low-voltag.

C5342 Features

* Large collector current : IC=500mA
* Low collector saturation voltage enabling low-voltage operation
* Complementary pair with 2SA1979 Ordering Information Type NO. 2SC5342 Marking C5342 Package Code TO-92 Outline Dimensions unit : mm 4.4~4.6 3.35~3.55 2.15~2.35 4.4

📥 Download Datasheet

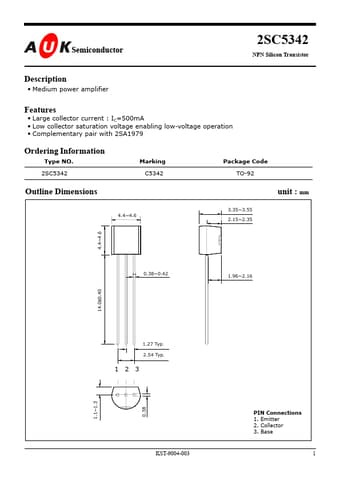

Preview of C5342 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5342
Manufacturer
AUK
File Size
217.88 KB
Datasheet
C5342-AUK.pdf
Description
2SC5342
