LA7567BVA - TV and VCR IF Signal Processor

Ordering number : ENN7939B SANYO Semiconductors DATA SHEET Monolithic Linear IC LA7567BVA TV and VCR IF Signal Processor (VIF + SIF + SIF converter) The LA7567BVA is a PAL/NTSC multiformat VIF/SIF IC that adopts a semi-adjustment-free system.

The VIF block adopts a system in which VCO adjustment makes AFT adjustment unnecessary to simplify adjustment.

The FM detector adopts a PLL detection system that supports multi-detection audio.

This IC also integrates an SIF converter, making design of

LA7567BVA Features

* No AFT or SIF coils are required, making these circuits adjustment free. Allows PAL/NTSC multiformat systems to be implemented easily. Built-in buzz canceller for excellent audio quality. VCC = 5V, low power: 250mW Specifications Maximum Ratings at at Ta = 25

LA7567BVA-Sanyo.pdf

Preview of LA7567BVA PDF

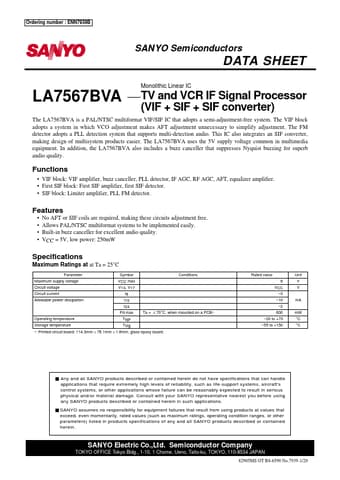

LA7567BVA Datasheet Preview Page 2 LA7567BVA Datasheet Preview Page 3

Datasheet Details

Part number:

LA7567BVA

Manufacturer:

Sanyo

File Size:

181.55 KB

Description:

Tv and vcr if signal processor.
