LB11817 - Three-Phase Full-Wave Linear Drive

Datasheet Summary

Features

  • Three-phase full-wave linear drive Low saturation voltage Built-in digital speed control Start/stop circuit (active low) Speed switching Current limiter Index processing circuit The index timing can be adjustment with a variable resistor.
  • Thermal protection circuit 0.8 5.6 1 0.30 18 0.20 15.2 0.10 0.8 1.8max (1.5) SANYO: SSOP36 Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Maximum.

📥 Download Datasheet

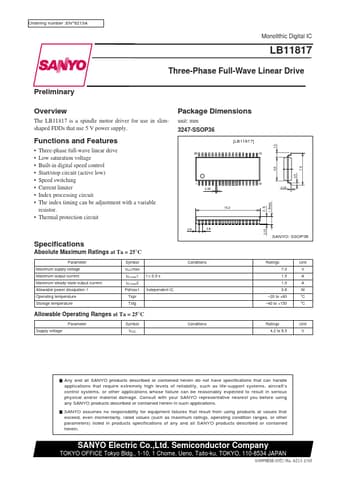

Datasheet preview – LB11817

Datasheet Details

Part number LB11817
Manufacturer Sanyo
File Size 100.53 KB
Description Three-Phase Full-Wave Linear Drive
Datasheet download datasheet LB11817 Datasheet
Additional preview pages of the LB11817 datasheet.
