LB11824M - Direct PWM Drive Brushless Motor Predriver

Product Overview

Sanyo

📥 Download Datasheet

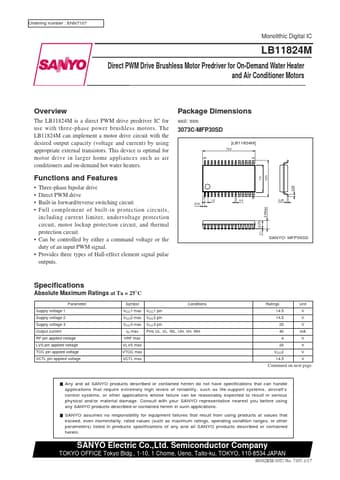

LB11824M Direct PWM Drive Brushless Motor Predriver by Sanyo - Datasheet Preview — Datasheet preview – LB11824M

Datasheet Details

Part number	LB11824M
Manufacturer	Sanyo
File Size	178.31 KB
Description	Direct PWM Drive Brushless Motor Predriver
Datasheet	LB11824M Datasheet
Additional preview pages of the LB11824M datasheet.

Product details

Description

Pin

Features

Three-phase bipolar drive Direct PWM drive Built-in forward/reverse switching circuit Full complement of built-in protection circuits, including current limiter, undervoltage protection circuit, motor lockup protection circuit, and thermal protection circuit.
Can be controlled by either a command voltage or the duty of an input PWM signal.
Provides three types of Hall-effect element signal pulse outputs. 1 (0.6) 1.0 0.4 10.5 7.9 15 2.
