LB11823M - Direct PWM Drive Brushless Motor Predriver

Datasheet Summary

Features

  • this device is optimal for motor drive in OA products that use power brushless motors. Package Dimensions unit: mm 3129-MFP36SD [LB11823M] 36 19 Functions and Features.
  • Three-phase bipolar drive Direct PWM drive Built-in FG amplifier and Schmitt comparator circuits Braking function (short-circuit braking) Built-in forward/reverse switching circuit Full complement of built-in protection circuits, including current limiter, undervoltage.

📥 Download Datasheet

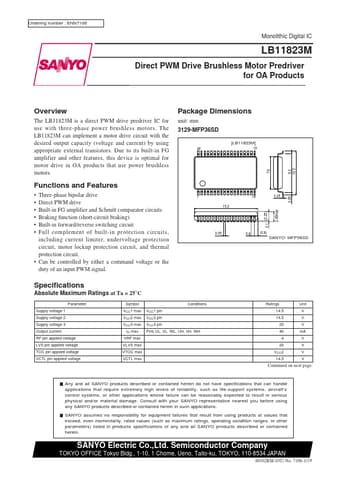

Datasheet preview – LB11823M

Datasheet Details

Part number LB11823M
Manufacturer Sanyo
File Size 176.39 KB
Description Direct PWM Drive Brushless Motor Predriver
Datasheet download datasheet LB11823M Datasheet
Additional preview pages of the LB11823M datasheet.

📁 Similar Datasheet

  • LB11822 - Three-Phase Brushless Motor Driver (Sanyo Semicon Device)
  • LB11826 - Three-Phase Brushless Motor Driver (Sanyo Semicon Device)
  • LB11826 - Three-Phase Brushless Motor Driver (ON Semiconductor)
  • LB11850V - Monolithic Digital IC (Sanyo Semicon Device)
  • LB11850VA - Monolithic Digital IC (Sanyo Semicon Device)
  • LB11851FA - Microprocessor Fan Motor Interface Driver (ON Semiconductor)
  • LB11851M - Monolithic Digital IC (Sanyo Semicon Device)
  • LB11851MC - Microprocessor Fan Motor Interface Driver (ON Semiconductor)
  • LB11852RV - Single-phase Full-wave Pre-driver (ON Semiconductor)
  • LB11862M - Single-Phase Full-Wave Fan Motor Driver (Sanyo Semicon Device)
Other Datasheets by Sanyo
  • LB11820 - Direct PWM Drive Brushless Pre-Driver
  • LB11820M - Direct PWM Drive Brushless Pre-Driver
  • LB11824 - Direct PWM Drive Brushless Motor Predriver
  • LB11824M - Direct PWM Drive Brushless Motor Predriver
  • LB11817 - Three-Phase Full-Wave Linear Drive
  • LB11847 - PWM Current Control Type Stepping Motor Driver
  • LB11860T - (LB11861) Direct PWM Variable Speed Fan Motor Driver IC Developed
  • LB11870 - Three-Phase Brushless Motor Driver

Full PDF Text Transcription

Click to expand full text
Ordering number : ENN7106 Monolithic Digital IC LB11823M Direct PWM Drive Brushless Motor Predriver for OA Products Overview The LB11823M is a direct PWM drive predriver IC for use with three-phase power brushless motors. The LB11823M can implement a motor drive circuit with the desired output capacity (voltage and current) by using appropriate external transistors. Due to its built-in FG amplifier and other features, this device is optimal for motor drive in OA products that use power brushless motors.
