STK391-020 - 2-Channel Convergence Correction Circuit

Sanyo

Datasheet Details

Part number	STK391-020
Manufacturer	Sanyo
File Size	102.19 KB
Description	2-Channel Convergence Correction Circuit

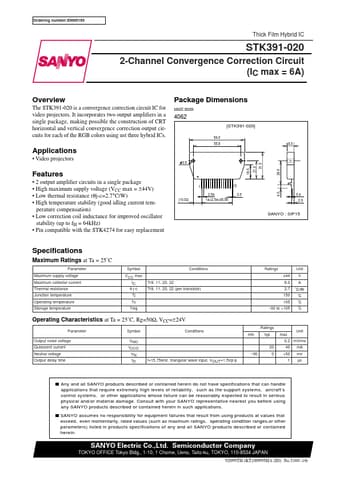

Datasheet	STK391-020_Sanyo.pdf

2 output amplifier circuits in a single package.
High maximum supply voltage (VCC max = ±44V).
Low thermal resistance (θj-c=2.7°C/W).
High temperature stability (good idling current tem- perature compensation).
Low correction coil inductance for improved oscillator stability (up to fH = 64kHz).
Pin compatible with the STK4274 for easy replacement Package Dimensions unit:mm 4062 [STK391-020] 64.0 55.6 3.6 (10.02) 1 15 2.54 14×2.54=35.56.
