STK621-041 Datasheet - Sanyo

IMST Inverter Power Hybrid IC

STK621-041 Features

* Integrates the IGBT, FRD, pre-driver and protection circuits.

* Built-in thermal protection, overcurrent protection (bus line) and pre-driver supply under voltage protection.

* Allows CMOS-level input of control signals without an insulating circuit.

* Use of an upp

STK621-041 General Description

VB1(1) U(2) CB VB2(4) V(5) CB VB3(7) W(8) CB +(10) U.V. U.V. U.V. -(12) HIN1(13) HIN2(14) HIN3(15) LIN1(16) LIN2(17) LIN3(18) FAULT(19) ISO(20) VDD(21) VSS(22) Shunt-R Level Shifter Logic Level Shifter Logic Level Shifter L.

STK621-041 Datasheet (113.14 KB)

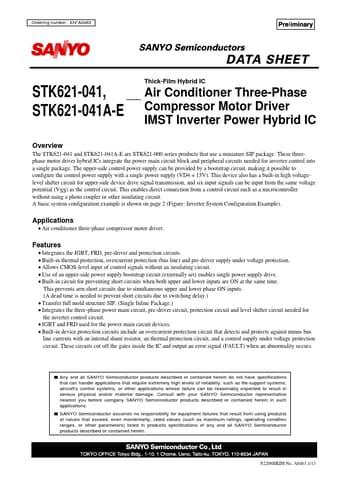

Preview of STK621-041 PDF

Datasheet Details

Part number:

STK621-041

Manufacturer:

Sanyo

File Size:

113.14 KB

Description:

Imst inverter power hybrid ic.
Ordering number : EN A0483 STK621-041, STK621-041A-E Thick-Film Hybrid IC Air Conditioner Three-Phase Compressor Motor Driver IMST Inverter Powe.
