STK621-043A-E

Air Conditioner Three-Phase Compressor Motor Driver IMST Inverter Power Hybrid IC

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi STK621-043A-E IC HALF BRIDGE DRIVER 20A 23SIP DigiKey 0 0
$0

STK621-043A-E Datasheet (67.48 KB)

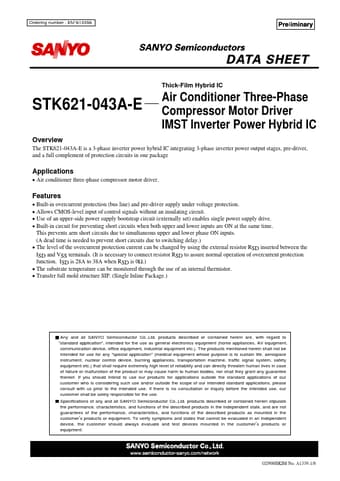

Preview of STK621-043A-E PDF Datasheet

Datasheet Details

Part number:

STK621-043A-E

Manufacturer:

Sanyo

File Size:

67.48 KB

Description:

Air conditioner three-phase compressor motor driver imst inverter power hybrid ic

STK621-043A-E Features

* Built-in overcurrent protection (bus line) and pre-driver supply under voltage protection.

* Allows CMOS-level input of control signals without an insulating circuit.

* Use of an upper-side power supply bootstrap circuit (externally set) enables single power supply drive.

STK621-043A-E General Description

unit V V
*1 Control power supply (VD4=15±1.5V) must have the capacity of IO=20mA(DC), 0.5A(Peak). Usage Pr.
