MCX120A

Potentiometer Cable Sensor

MCX120A Features

* Rugged housing.

* Easy to install.

* MS-connector.

* Length measurement up to 400 mm.

* Moisture and corrosion resistant.

* Withstands vibration and shock. ORDERING INFORMATION Name MCX120A1003 MCX120A1005 Resistance RTOTAL 1 kΩ RTOTAL 1 kΩ Conn

MCX120A General Description

MCX120A Potentiometer Cable Sensor Technical Information Overview The Cable Sensor MCX120A uses a 10-turn potentiometer as the sensing element for length measurement. It is designed for use as a feedback sensor in e.g. measuring the cutting depth of a planer. The Sensor consists of a 10-turn potent.

MCX120A Datasheet (81.78 KB)

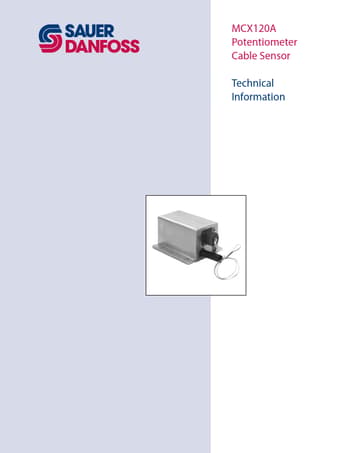

Preview of MCX120A PDF

Datasheet Details

Part number:

MCX120A

Manufacturer:

Sauer-Danfoss

File Size:

81.78 KB

Description:

Potentiometer cable sensor.
