MCX18N00B Datasheet, Ccd, Sony

MCX18N00B Features

  • Ccd
  • Ultra-compact size: MCX18N00A 18.3mm × 18.3mm × 8.4mm MCX18N00B 18.3mm × 18.3mm × 9.6mm
  • Y/C analog output
  • Employs a Type 1/5, 180,000-pixel color CCD image

PDF File Details

Part number:

MCX18N00B

Manufacturer:

Sony

File Size:

210.67kb

Download:

📄 Datasheet

Description:

Micro unit ccd. The micro unit CCD is a CCD color camera unit with built-in CCD image sensor, drive system IC, sample-and-hold IC, signal processor I

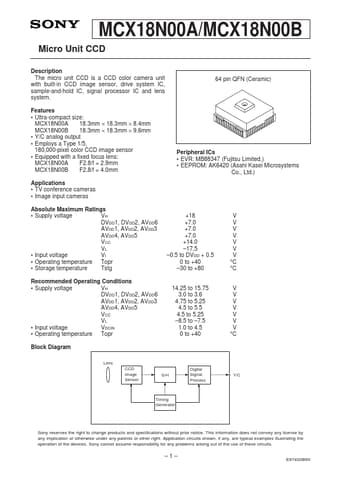

Datasheet Preview: MCX18N00B 📥 Download PDF (210.67kb)
Page 2 of MCX18N00B Page 3 of MCX18N00B

MCX18N00B Application

  • Applications
  • TV conference cameras
  • Image input cameras Absolute Maximum Ratings
  • Supply voltage VH DVDD1, DVDD2, AVDD6
