MCX18LG0A - Micro Unit CCD

MCX18LG0A Description

MCX18LG0A/MCX18LG0B Micro Unit CCD .
The micro unit CCD is a CCD color camera unit with a built-in CCD image sensor, drive system IC, sample-and-hold IC, signal processor IC and lens syst.

MCX18LG0A Features

* Ultra-small size: MCX18LG0A: 18.3mm × 18.3mm × 8.4mm MCX18LG0B: 18.3mm × 18.3mm × 9.6mm
* Y, U/V 16-bit digital output
* 180,000-pixel color CCD image sensor

MCX18LG0A Applications

* TV conference cameras
* Image input cameras 64 pin QFN (Ceramic) Peripheral ICs
* EVR: MB88347 (Fujitsu Limited. )
* EEPROM: AK6420 (Asahi Kasei Microsystems Co. , Ltd. ) Absolute Maximum Ratings +18
* Supply voltage VH +7.0 DVDD1, DVDD2 AVDD1, AVDD2, AVDD3 +

📥 Download Datasheet

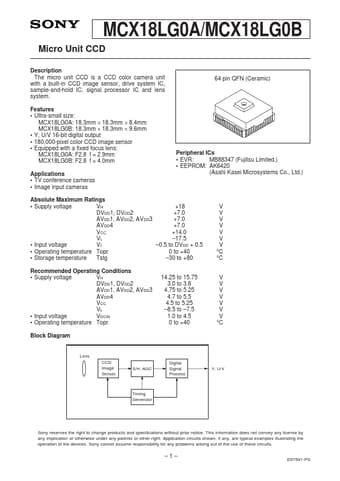

Preview of MCX18LG0A PDF
