2N6673

(2N6671 - 2N6673) Silicon Power Transistor

2N6673 General Description


*With TO-3 package
*Low saturation voltage
*Fast switching speed
*High voltage ratings APPLICATIONS
*Off-line power supplies
*High-voltage inverters
*Switching regulators PINNING PIN 1 2 3 Base Emitter Collector DESCRIPTION 2N6671 2N6672 2N6673 Fig.1 simplified outline .

2N6673 Datasheet (138.78 KB)

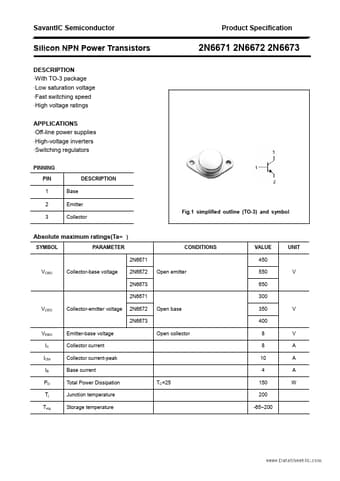

Preview of 2N6673 PDF

Datasheet Details

Part number:

2N6673

Manufacturer:

SavantIC

File Size:

138.78 KB

Description:

(2n6671 - 2n6673) silicon power transistor.
