2N6677, 2N6676, NPN POWER TRANSISTORS

HIGH VOLTAGE/HIGH SPEED NPN POWER TRANSISTORS GE EQUIVALENT D64VS3, 4, 5 2N6676,77,78 300-400 VOLTS 15 AMP, 175 WATTS The 2N6676, 2N6677 and 2N6678 .

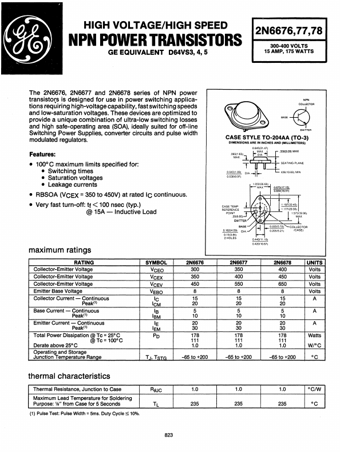

datasheet Preview Page 1 from Datasheet4u.com

2N6676-GE.pdf

2N6677 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N6677, 2N6676. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N6677, 2N6676

Manufacturer:

File Size:

441.26 KB

Description:

NPN POWER TRANSISTORS

Note:

This datasheet PDF includes multiple part numbers: 2N6677, 2N6676.
Please refer to the document for exact specifications by model.

Features

* 100°C maximum limits specified for:
* Switching times
* Saturation voltages
* Leakage currents
* RBSOA (VCEX = 350 to 450V) at rated IC continuous.

Applications

* requiring high-voltage capability, fast switching speeds and low-saturation voltages. These devices are optimized to provide a unique combination of ultra-low switching losses and high safe-operating area (SOA), ideally suited for off-line Switching Power Supplies, converter circuits and pulse width
