2SA1307 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

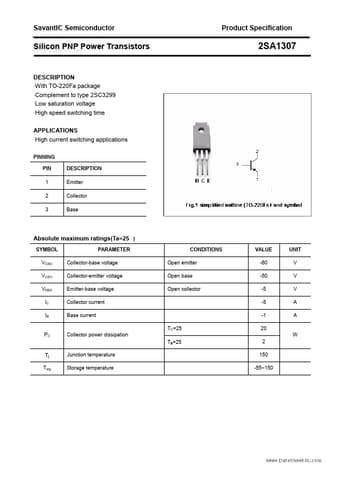

Datasheet preview – 2SA1307

Datasheet Details

Part number 2SA1307
Manufacturer SavantIC
File Size 198.05 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1307 Datasheet
Additional preview pages of the 2SA1307 datasheet.

Product details

Description

With TO-220Fa package Complement to type 2SC3299 Low saturation voltage High speed switching time APPLICATIONS High current switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperature Storage temperature 2 150 -55~
