2SA1308 Datasheet - SavantIC

2SA1308 SILICON POWER TRANSISTOR

*With TO-220F package *Low collector saturation voltage APPLICATIONS *High current switching applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETE.

2SA1308_SavantIC.pdf

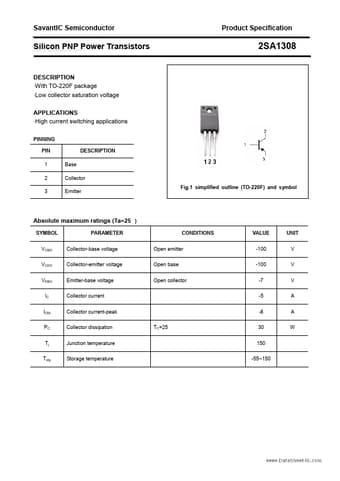

Preview of 2SA1308 PDF
2SA1308 Datasheet Preview Page 2 2SA1308 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1308

Manufacturer:

SavantIC

File Size:

231.84 KB

Description:

Silicon power transistor.
