2SA1907 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1907

Manufacturer:

SavantIC

File Size:

217.62kb

Download:

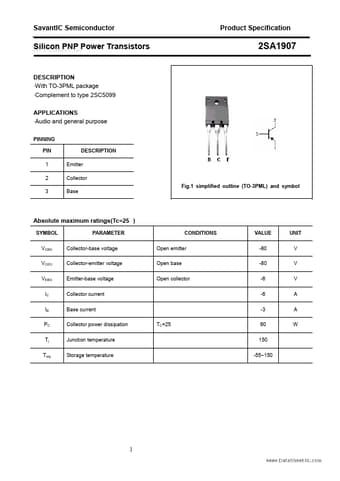

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PML package

Complement to type 2SC5099 APPLICATIONS

Audio and general purpose PINNING PIN 1 2 3 D

2SA1907 Application

• Applications
• Audio and general purpose PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Fig.1 simplified outline (TO-3PML) and symbol
