2SA1900 - Medium Power Transistor

Datasheet Summary

Features

1) Low saturation voltage, typically VCE(sat)=.
0.15V at IC/ IB=.
500mA/.
50mA 2) PC=2W (on 40×40×0.7mm ceramic board) 3) Complements the 2SC5053 zDimensions (Unit : mm) MPT3 z Absolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter- base voltage Collector current Symbol VCBO VCEO VEBO IC Limits.
60.
50.
5.
1.
2 Collector power dissipation PC 0.5 2 Collector power dissipation tj.

Datasheet Details

Part number	2SA1900
Manufacturer	ROHM
File Size	72.69 KB
Description	Medium Power Transistor
Datasheet	2SA1900 Datasheet
Additional preview pages of the 2SA1900 datasheet.

📁 Similar Datasheet

2SA1900 - Medium power transistor (Kexin)

2SA1900U - PNP Transistor (SEMTECH)

2SA1905 - Silicon PNP Epitaxial Type Transistor (Toshiba Semiconductor)

2SA1907 - Silicon PNP Transistor (Sanken electric)

2SA1907 - SILICON POWER TRANSISTOR (SavantIC)

2SA1907 - Power Transistor (Inchange Semiconductor)

2SA1908 - Silicon PNP Transistor (Sanken electric)

2SA1908 - SILICON POWER TRANSISTOR (SavantIC)

2SA1908 - Power Transistor (Inchange Semiconductor)

2SA1909 - Silicon PNP Transistor (Sanken electric)

Full PDF Text Transcription

Click to expand full text

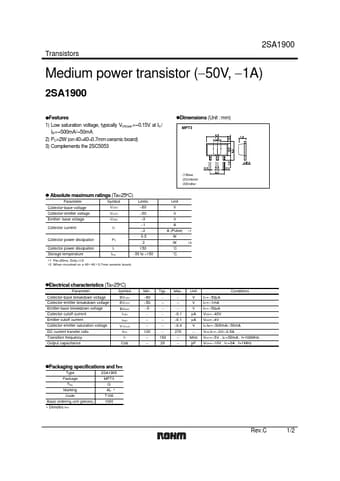

Transistors 2SA1900 Medium power transistor (−50V, −1A) 2SA1900 zFeatures 1) Low saturation voltage, typically VCE(sat)=−0.15V at IC/ IB=−500mA/−50mA 2) PC=2W (on 40×40×0.7mm ceramic board) 3) Complements the 2SC5053 zDimensions (Unit : mm) MPT3 z Absolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter- base voltage Collector current Symbol VCBO VCEO VEBO IC Limits −60 −50 −5 −1 −2 Collector power dissipation PC 0.5 2 Collector power dissipation tj 150 Storage temperature tstg −55 to +150 ∗1 Pw=20ms, Duty=1/2 ∗2 When mounted on a 40 40 0.7mm seramic board.
