2SA1905 - Silicon PNP Epitaxial Type Transistor

Toshiba Semiconductor

Datasheet Details

Part number	2SA1905
Manufacturer	Toshiba Semiconductor
File Size	144.10 KB
Description	Silicon PNP Epitaxial Type Transistor
Datasheet	2SA1905 Datasheet
Additional preview pages of the 2SA1905 datasheet.

📁 Similar Datasheet

2SA1900 - Medium Power Transistor (Rohm)
2SA1900 - Medium power transistor (Kexin)
2SA1900U - PNP Transistor (SEMTECH)
2SA1906 - High-speed Switching Transistor (ROHM)
2SA1907 - Silicon PNP Transistor (Sanken electric)
2SA1907 - SILICON POWER TRANSISTOR (SavantIC)
2SA1907 - Power Transistor (Inchange Semiconductor)
2SA1908 - Silicon PNP Transistor (Sanken electric)
2SA1908 - SILICON POWER TRANSISTOR (SavantIC)
2SA1908 - Power Transistor (Inchange Semiconductor)

Other Datasheets by Toshiba Semiconductor

2SA1923 - SILICON PNP TRIPLE DIFFUSED TYPE TRANSISTOR
2SA1924 - SILICON PNP TRIPLE DIFFUSED TYPE TRANSISTOR
2SA1925 - TRANSISTOR
2SA1926 - Silicon PNP Epitaxial Type Transistor
2SA1930 - PNP Transistor
2SA1932 - Silicon PNP Transistor
2SA1933 - Silicon PNP Epitaxial Type Transistor
2SA1934 - Silicon PNP Epitaxial Type Transistor

Full PDF Text Transcription

Click to expand full text

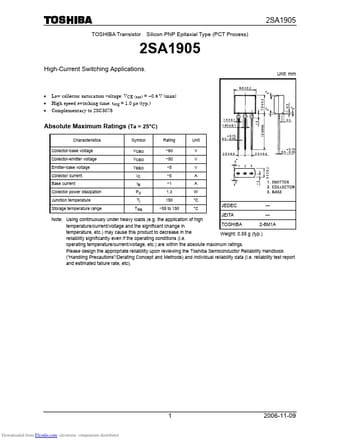

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1905 High-Current Switching Applications. 2SA1905 Unit: mm • Low collector saturation voltage: VCE (sat) = −0.4 V (max) • High speed switching time: tstg = 1.0 μs (typ.) • Complementary to 2SC5076 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO −60 V Collector-emitter voltage VCEO −50 V Emitter-base voltage VEBO −5 V Collector current IC −5 A Base current IB −1 A Collector power dissipation PC 1.3 W Junction temperature Storage temperature range Tj 150 °C Tstg −55 to 150 °C JEDEC ― Note: Using continuously under heavy loads (e.g.
