2SA1932 Datasheet - Toshiba Semiconductor

2SA1932 Silicon PNP Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA1932 Power Amplifier Applications Driver Stage Amplifier Applications 2SA1932 Unit: mm High transition frequency: fT = 70 MHz (typ.) Complementary to 2SC5174 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 230 V Collector-emitter voltage VCEO 230 V Emitter-base voltage VEBO 5 V Collector current IC 1 A Base current IB <.

2SA1932_ToshibaSemiconductor.pdf

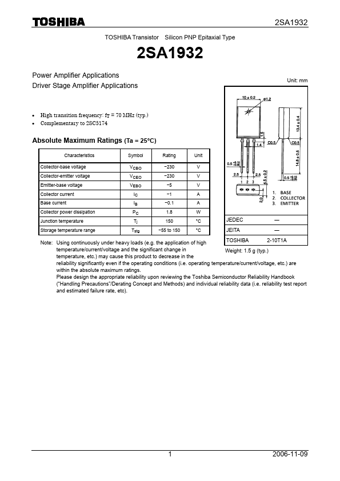

Preview of 2SA1932 PDF
2SA1932 Datasheet Preview Page 2 2SA1932 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1932

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

129.06 KB

Description:

Silicon pnp transistor.
