2SA1930 PNP Transistor

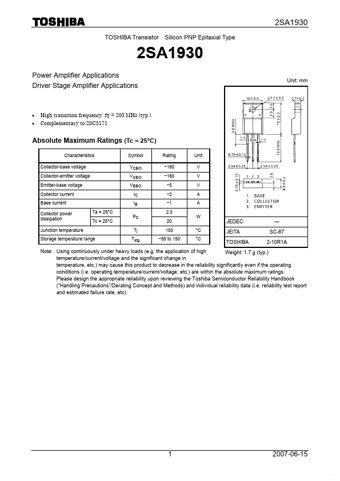

2SA1930 TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA1930 Power Amplifier Applications Driver Stage Amplifier Applications Unit: mm High transition frequency: fT = 200 MHz (typ.) Complementary to 2SC5171 Absolute Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Ta = 25°C Tc = 25°C Symbol VCBO VCEO VE.
