2SA907 Datasheet - SavantIC

2SA907 (2SA907 - 2SA909) Silicon POwer Transistors

*With TO-3 package *Complement to type 2SC1584/1585/1586 APPLICATIONS *For power switching and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL PARAMETER 2SA907 V.

2SA907 Datasheet (138.01 KB)

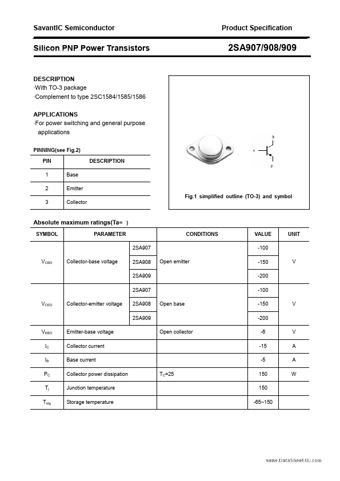

Preview of 2SA907 PDF
2SA907 Datasheet Preview Page 2 2SA907 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA907

Manufacturer:

SavantIC

File Size:

138.01 KB

Description:

(2sa907 - 2sa909) silicon power transistors.
