2SA908 Datasheet, Transistors, SavantIC

PDF File Details

Part number:

2SA908

Manufacturer:

SavantIC

File Size:

138.01kb

Download:

📄 Datasheet

Description:

(2sa907 - 2sa909) silicon power transistors.

  • With TO-3 package
  • Complement to type 2SC1584/1585/1586 APPLICATIONS
  • For power switching and general purpos

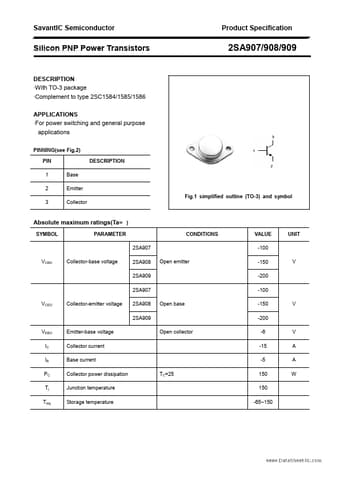

  • Datasheet Preview: 2SA908 📥 Download PDF (138.01kb)
    Page 2 of 2SA908 Page 3 of 2SA908

    2SA908 Application

    • Applications
    • For power switching and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outl
