| Part number | 2SA909, 2SA907 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 138.01 KB |
| Description | (2SA907 - 2SA909) Silicon POwer Transistors |
| Datasheet |
 2SA907_SavantIC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2SA909, 2SA907. Please refer to the document for exact specifications by model. |

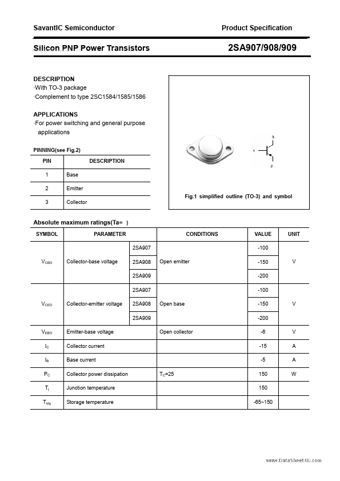

With TO-3 package Complement to type 2SC1584/1585/1586 APPLICATIONS For power switching and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL PARAMETER 2SA907 VCBO Collector-base voltage 2SA908 2SA909 2SA907 VCEO Collector-emitter voltage 2SA908 2SA909 VEBO IC IB PC Tj Tstg Emitter-base voltage Collector current Base current Collector power dissipation Junct
