2SB1566

SILICON POWER TRANSISTOR

2SB1566 General Description


*With TO-220F package
*Excellent DC current gain characteristics
*Low collector saturation voltage
*Wide SOA (safe operating area)

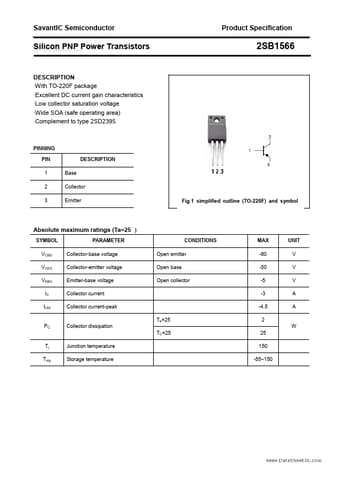

*Complement to type 2SD2395 PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum rat.

2SB1566 Datasheet (235.72 KB)

Preview of 2SB1566 PDF

Datasheet Details

Part number:

2SB1566

Manufacturer:

SavantIC

File Size:

235.72 KB

Description:

Silicon power transistor.
