2SB1568 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SB1568 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB1568
Manufacturer SavantIC
File Size 233.35 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1568_SavantIC.pdf

2SB1568 Product details

Description

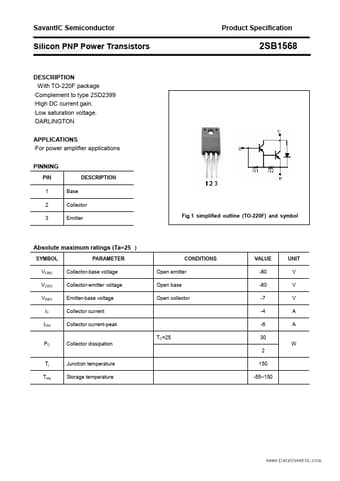

With TO-220F package Complement to type 2SD2399 High DC current gain. Low saturation voltage. DARLINGTON APPLICATIONS For power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak TC=25 PC Collector dissipation 2 Tj
