2SB720 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SB720

Datasheet Details

Part number 2SB720
Manufacturer SavantIC
File Size 116.44 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB720 Datasheet
Additional preview pages of the 2SB720 datasheet.

Product details

Description

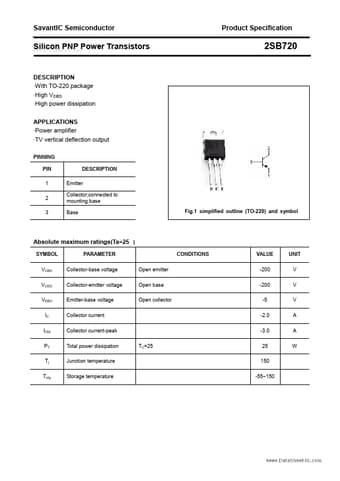

With TO-220 package High VCEO High power dissipation APPLICATIONS Power amplifier TV vertical deflection output PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Total power dissipation Junction temperatur
