2SB858 Datasheet, TRANSISTOR, SavantIC

PDF File Details

Part number:

2SB858

Manufacturer:

SavantIC

File Size:

162.13kb

Download:

📄 Datasheet

Description:

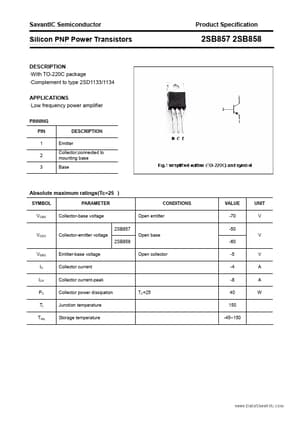

(2sb857 / 2sb858) silicon power transistor.

With TO-220C package

Complement to type 2SD1133/1134 APPLICATIONS

Low frequency power amplifier PINNING PI

2SB858 Application

• Applications
• Low frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximu
