Part number: 2SC2611
Manufacturer: SavantIC
File Size: 134.25KB
Download: 📄 Datasheet

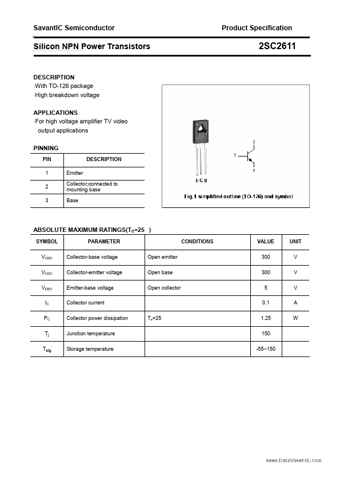

Description: SILICON POWER TRANSISTOR
*For high voltage amplifier TV video output applications PINNING
PIN 1 2 3 Emitter Collector;connected to mounting b.
*With TO-126 package
*High breakdown voltage APPLICATIONS
*For high voltage amplifier TV video output applications PINNING
PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION
ABSOLUTE MAXIMUM RATINGS(TC=25 )
SYMBOL VC.
