2SC3280 Datasheet - SavantIC

2SC3280 SILICON POWER TRANSISTOR

*With TO-3PL package *Complement to type 2SA1301 APPLICATIONS *Power amplifier applications *Recommended for 80W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Fig.1 simplified outline (TO-3PL) and.

2SC3280_SavantIC.pdf

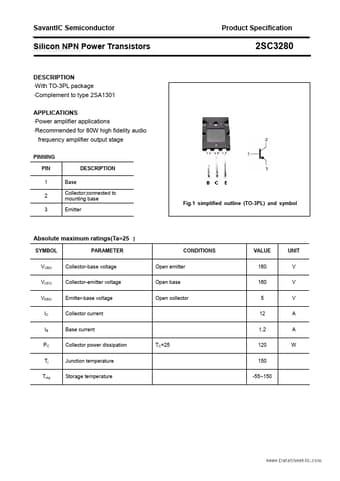

Preview of 2SC3280 PDF
2SC3280 Datasheet Preview Page 2 2SC3280 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3280

Manufacturer:

SavantIC

File Size:

182.60 KB

Description:

Silicon power transistor.
