2SC3892A - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-3P(H)IS package Built-in damper diode High voltage ,high speed APPLICATIONS Horizontal deflection output applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO

📥 Download Datasheet

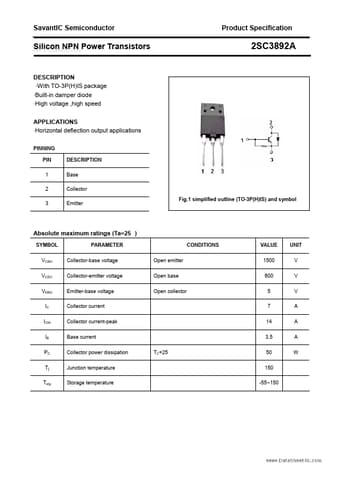

Datasheet preview – 2SC3892A

Datasheet Details

Part number 2SC3892A
Manufacturer SavantIC
File Size 274.40 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3892A Datasheet
