2SC3890 - Silicon NPN Transistor

📥 Download Datasheet

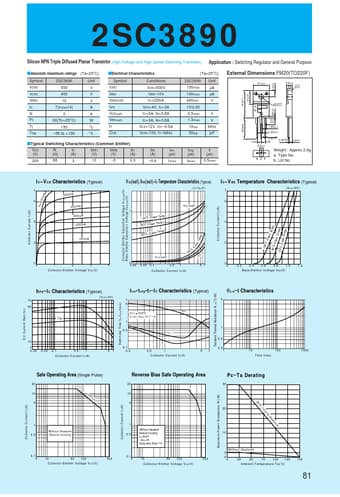

Datasheet preview – 2SC3890

Datasheet Details

Part number 2SC3890
Manufacturer Sanken electric
File Size 25.03 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3890 Datasheet
Additional preview pages of the 2SC3890 datasheet.

📁 Similar Datasheet

  • 2SC3890 - NPN Transistor (INCHANGE)
  • 2SC3890 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3892 - NPN Transistor (INCHANGE)
  • 2SC3892 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3892A - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3893 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3893 - NPN Transistor (INCHANGE)
  • 2SC3893A - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC3894 - NPN Transistor (Sanyo Semicon Device)
  • 2SC3894 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Sanken electric

Full PDF Text Transcription

Click to expand full text
2SC3890 Silicon NPN Triple Diffused Planar Transistor (High Voltage and High Speed Switchihg Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC3890 500 400 10 7(Pulse14) 2 30(Tc=25°C) 150 –55 to +150 Unit V V V A A W °C °C Application : Switching Regulator and General Purpose External Dimensions FM20(TO220F) 4.0±0.2 10.1±0.2 4.2±0.2 2.8 c0.5 sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=500V VEB=10V IC=25mA VCE=4V, IC=3A IC=3A, IB=0.6A IC=3A, IB=0.6A VCE=12V, IE=–0.5A VCB=10V, f=1MHz 100max 100max 400min 10 to 30 0.5max 1.3max 10typ 50typ (Ta=25°C) 2SC3890 Unit µA V V V MHz pF 13.0min 16.9±0.3 8.4±0.2 µA 1.35±0.15 1.35±0.15 0.85 +0.2 -0.1 0.45 +0.2 -0.1 2.54 2.2±0.2 2.4±0.
