2SC3902 Datasheet PDF - SavantIC SILICON POWER TRANSISTOR Specs

2SC3902 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-126 package Complement to type 2SA1507 Large current capacity High breakdown voltage APPLICATIONS Color TV audio output ,converters, inverters PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCB

Datasheet Details

Part number	2SC3902
Manufacturer	SavantIC
File Size	203.36 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC3902 Datasheet
Additional preview pages of the 2SC3902 datasheet.

📁 Similar Datasheet

2SC3902 - PNP/NPN Transistors (Sanyo Semicon Device)

2SC3902 - Bipolar Transistor (ON Semiconductor)

2SC3902 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)

2SC3902 - NPN Transistor (INCHANGE)

2SC3900 - Epitaxial Planar Silicon Transistor (Sanyo)

2SC3901 - PNP / NPN EPITAXIAL PLANAR SILICON TRANSISTORS (Sanyo)

2SC3901 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)

2SC3904 - Silicon NPN Transistor (Panasonic Semiconductor)

2SC3906K - High-voltage Amplifier Transistor (Rohm)

2SC3906K - High-voltage Amplifier Transistor (Kexin)

Full PDF Text Transcription

Click to expand full text

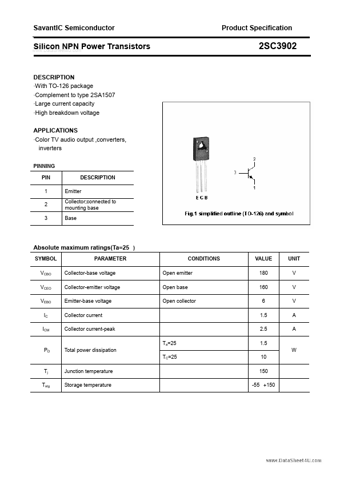

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3902 DESCRIPTION ·With TO-126 package ·Complement to type 2SA1507 ·Large current capacity ·High breakdown voltage APPLICATIONS ·Color TV audio output ,converters, inverters PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Ta=25 PD Total power dissipation TC=25 Tj Tstg Junction temperature Storage temperature 10 150 -55 +150 CONDITIONS Open emitter Open base Open collector VALUE 180 160 6 1.5 2.5 1.5 W UNIT V V V A A SavantIC Semiconductor www.DataSheet4U.

Published: Apr 3, 2009 |
