2SC3907 - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 180V(Min) Good Linearity of hFE Complement to Type 2SA1516 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power amplifier applications Recommend for 80W high fidelity audio

📥 Download Datasheet

Datasheet preview – 2SC3907

Datasheet Details

Part number 2SC3907
Manufacturer INCHANGE
File Size 219.30 KB
Description NPN Transistor
Datasheet download datasheet 2SC3907 Datasheet
Additional preview pages of the 2SC3907 datasheet.

📁 Similar Datasheet

  • 2SC3907 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3900 - Epitaxial Planar Silicon Transistor (Sanyo)
  • 2SC3901 - PNP / NPN EPITAXIAL PLANAR SILICON TRANSISTORS (Sanyo)
  • 2SC3901 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3902 - PNP/NPN Transistors (Sanyo Semicon Device)
  • 2SC3902 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3902 - Bipolar Transistor (ON Semiconductor)
  • 2SC3902 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC3904 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC3906K - High-voltage Amplifier Transistor (Rohm)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

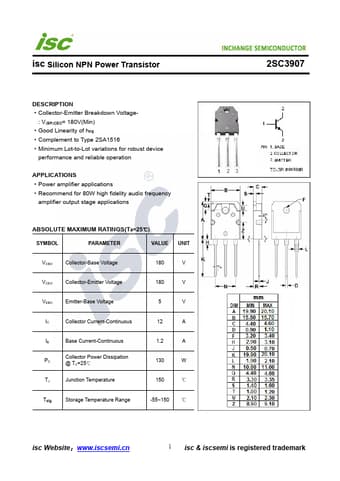

isc Silicon NPN Power Transistor DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 180V(Min) ·Good Linearity of hFE ·Complement to Type 2SA1516 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Power amplifier applications ·Recommend for 80W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 180 V VCEO Collector-Emitter Voltage 180 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 12 A IB Base Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 1.2 A 130 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SC3907 isc Website：www.iscsemi.
