2SC3913

PNP/NPN Epitaxial Planar Silicon Transistors

2SC3913 Features

* On-chip bias resistance : R1=4.7kΩ, R2=4.7kΩ.

* Small-sized package : CP.

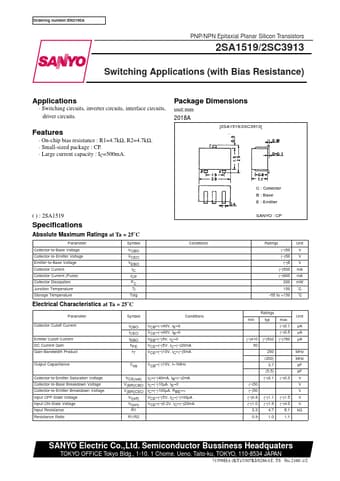

* Large current capacity : IC=500mA. Package Dimensions unit:mm 2018A [2SA1519/2SC3913] ( ) : 2SA1519 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit

2SC3913 Datasheet (42.03 KB)

Preview of 2SC3913 PDF

Datasheet Details

Part number:

2SC3913

Manufacturer:

Sanyo Semicon Device

File Size:

42.03 KB

Description:

Pnp/npn epitaxial planar silicon transistors.
Ordering number:EN2160A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1519/2SC3913 Switching Applications (with Bias Resistance) Applications
.
