2SC3918

PNP/NPN Epitaxial Planar Silicon Transistors

2SC3918 Features

* On-chip bias resistance : R1=2.2kΩ, R2=10kΩ.

* Small-sized package : SPA.

* Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1524/2SC3918] ( ) : 2SA1524 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitt

2SC3918 Datasheet (42.91 KB)

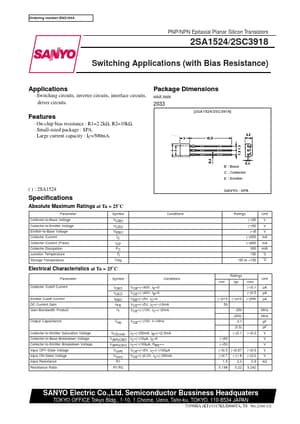

Preview of 2SC3918 PDF

Datasheet Details

Part number:

2SC3918

Manufacturer:

Sanyo Semicon Device

File Size:

42.91 KB

Description:

Pnp/npn epitaxial planar silicon transistors.
Ordering number:EN2164A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1524/2SC3918 Switching Applications (with Bias Resistance) Applications
.
